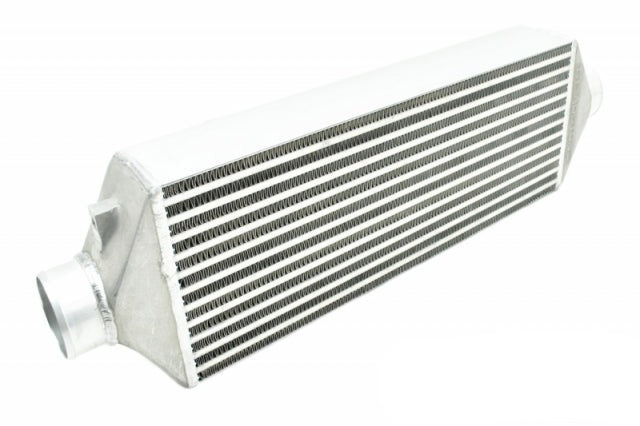

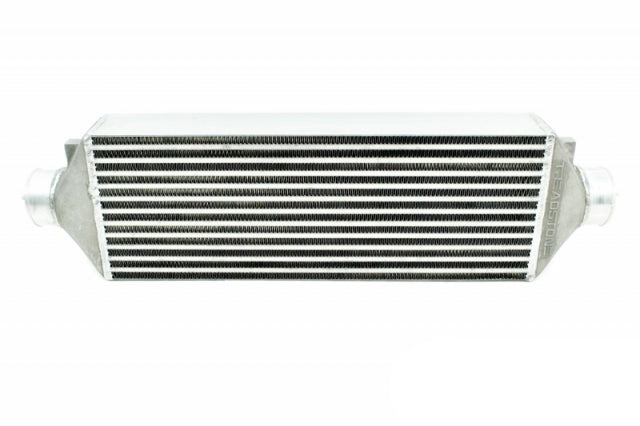

TREADSTONE TR8-24C INTERCOOLER 500HP

Brand new series intercooler with center inlet outlet configuration. Divergent nozzle design allows greater air flow to the top and bottom of the intercooler for increased efficiency. Perfect size intercooler for many turbocharged applications under 500hp.

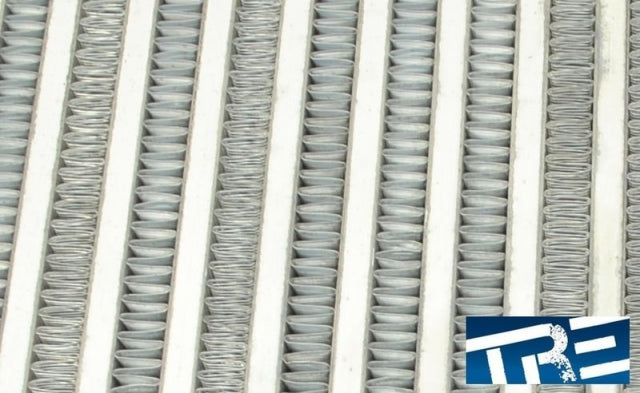

Treadstone Intercooler features superb quality highly efficient bar and plate construction. Our quality cast end tanks ensure evenly distributed airflow and low-pressure drop. Our intercoolers are pressure checked to 150psi and come with a 1-year warranty against manufacture defect. Please view the second picture above showing Treadstones high heat-dissipating internal fin design. This core uses Treadstone medium density internal fin structure.

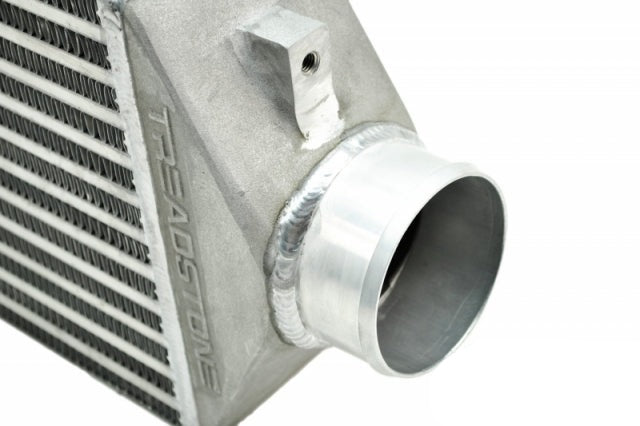

CNC Machined Inlets
-Greater internal area for increased flow
-better hose/clamp sealing
-3" inlet/outlet

TR8-24C
Core -Core Size, 7.8" X 24" X 3.5"
-Less Dense Internal Fin Structure
-750 CFM flow rate
-500 HP efficient
-Less than 1.5psi pressure drop at max flow
