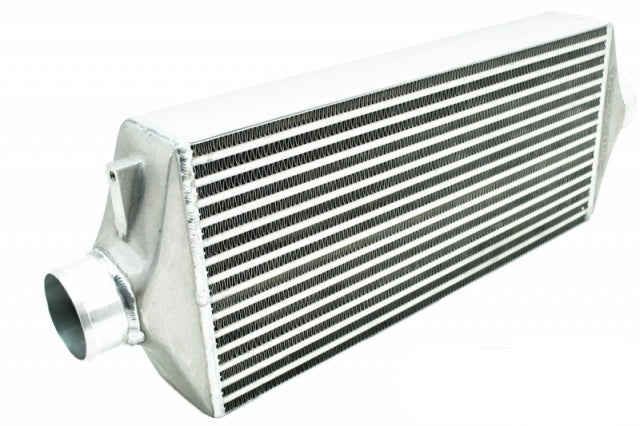

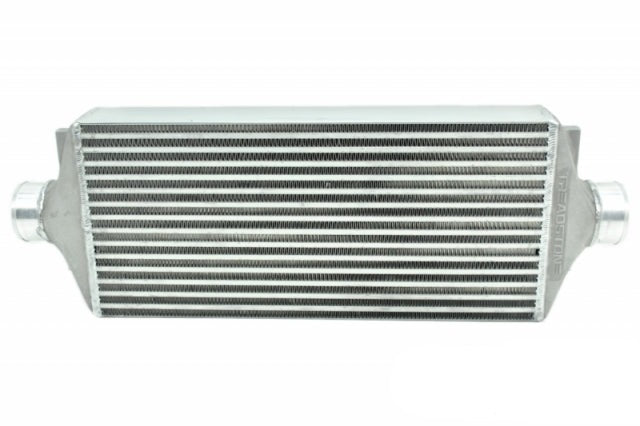

TREADSTONE TR10C INTERCOOLER 666HP

Brand new series intercooler with center inlet outlet configuration. Divergent nozzle design allows greater air flow to the top and bottom of the intercooler for increased efficiency. Perfect size intercooler for many turbocharged applications under 666HP.

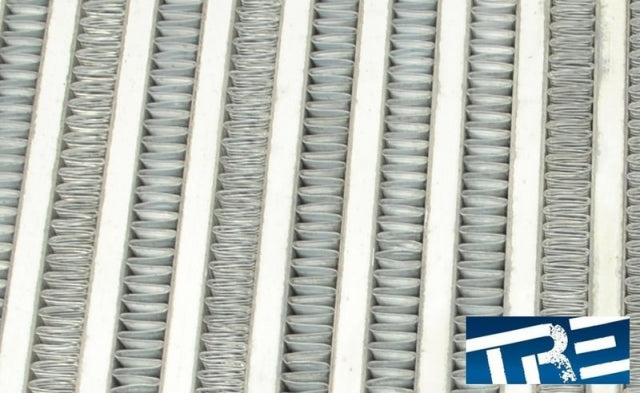

Treadstone Intercooler features superb quality highly efficient bar and plate construction. Our quality cast end tanks ensure evenly distributed airflow and low-pressure drop. Our intercoolers are pressure checked to 150psi and come with a 1-year warranty against manufacture defect. Please view the second picture above showing Treadstones high heat-dissipating internal fin design. This core uses Treadstone medium density internal fin structure.

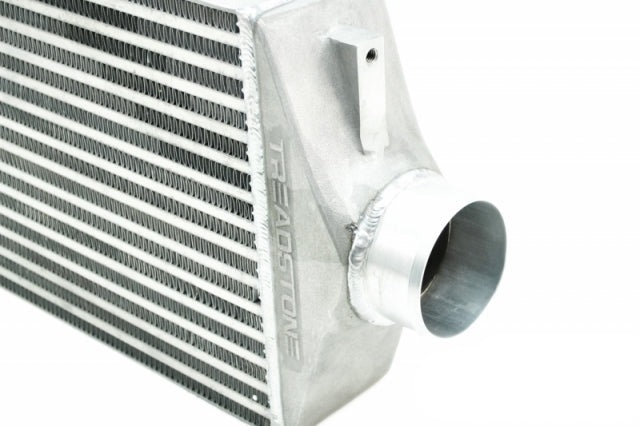

CNC Machined Inlets
-Greater internal area for increased flow
-better hose/clamp sealing
-3" inlet/outlet

Core
-Core Size, 10.5" X 22" X 3.5"
-Overall length 29.5"
-Bolt Thread overall apart length 25.5"
-1050 CFM flow rate
-666 HP efficient
-Less than 1.5psi pressure drop at max flow
