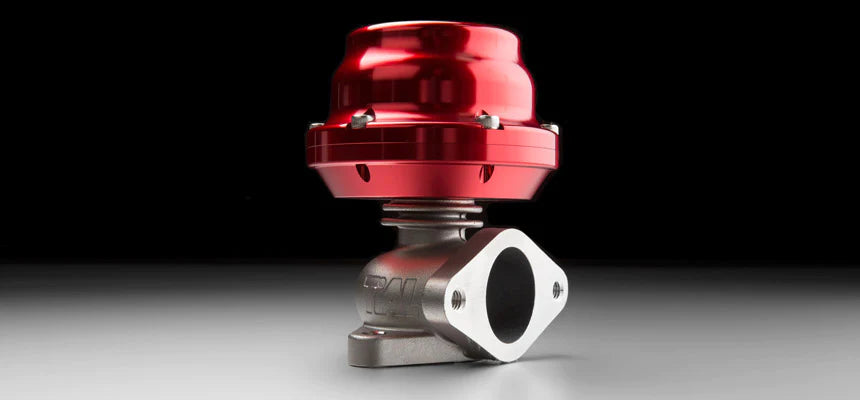

TiALSport F38 Wastegate 1.0bar

If you would like another spring option please call before order: 319 665 6612

The F38 replaces the legacy-model F35, and is unique in that it uses a 2-bolt flanged design for both inlet and outlet. This makes it an excellent upgrade or update for similar products.

Technical Specifications:

- High temp based alloy valve with a wear resistant coating offers longer product life compared to competing designs.

- Stainless steel valve housing.

- High temperature silicone reinforced actuator diaphragm.

- Stainless steel actuator spring gives consistent force at high temperature.

- Wear resistant stainless steel is used for the valve seat and valve bushing.

- Stainless steel hardware.

- Mating weld flanges are 304L SS.

- M10 air ports for easy install.

- Compact design fits in very tight spaces.

- 2-bolt inlet and outlet make install easy.

Included in the package:

- F38 wastegate assembly

- Inlet and outlet flanges, CNC machined in-house from 304L SS

- All air fittings, CNC machined in-house, from stainless steel and aluminum
