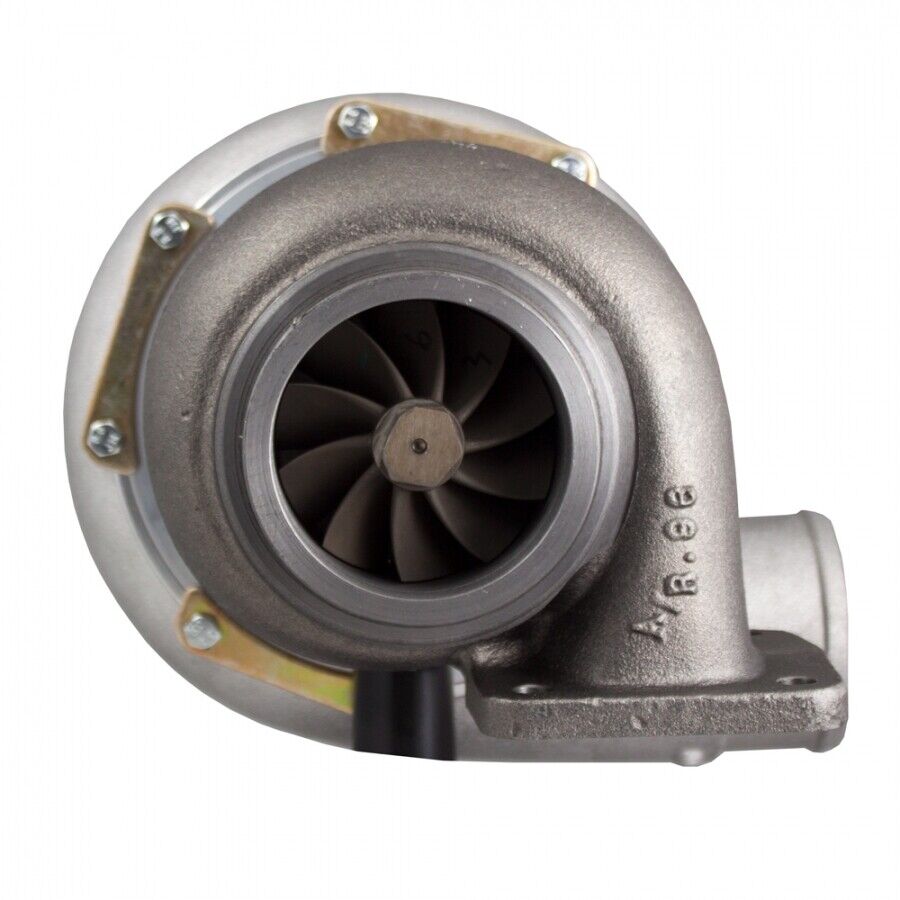

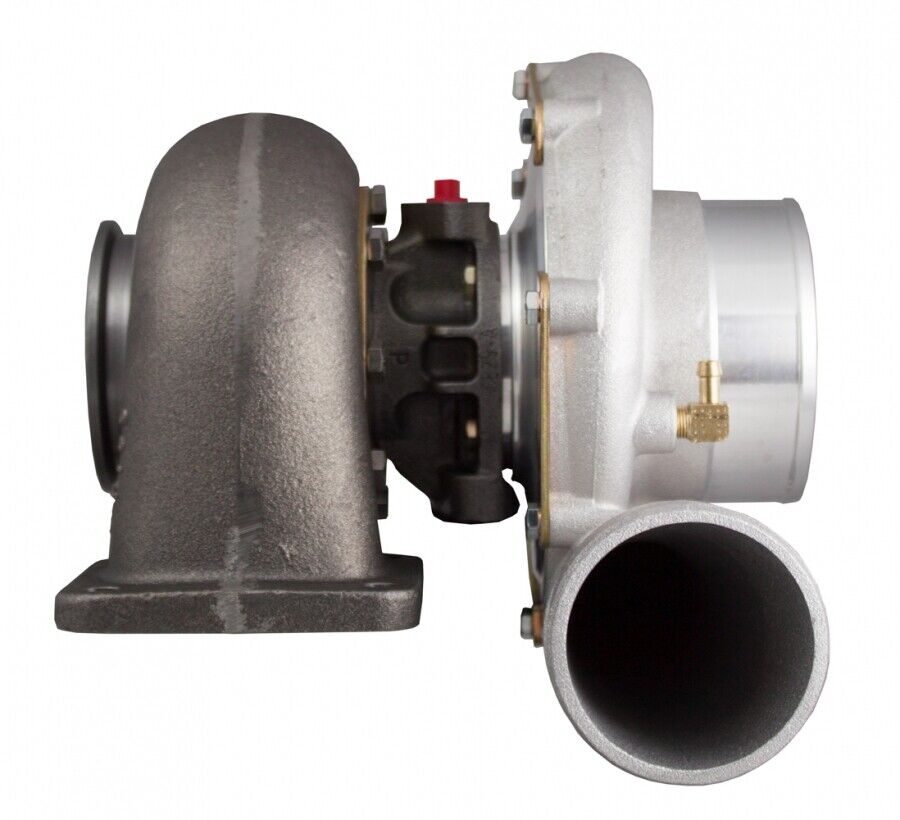

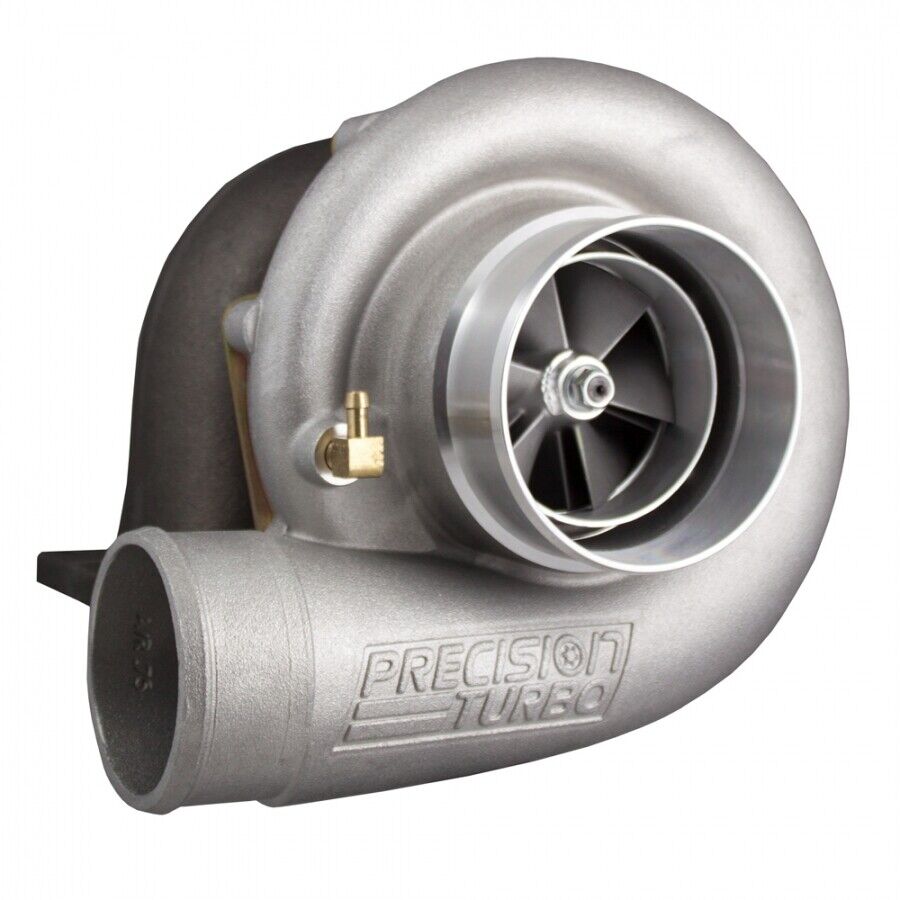

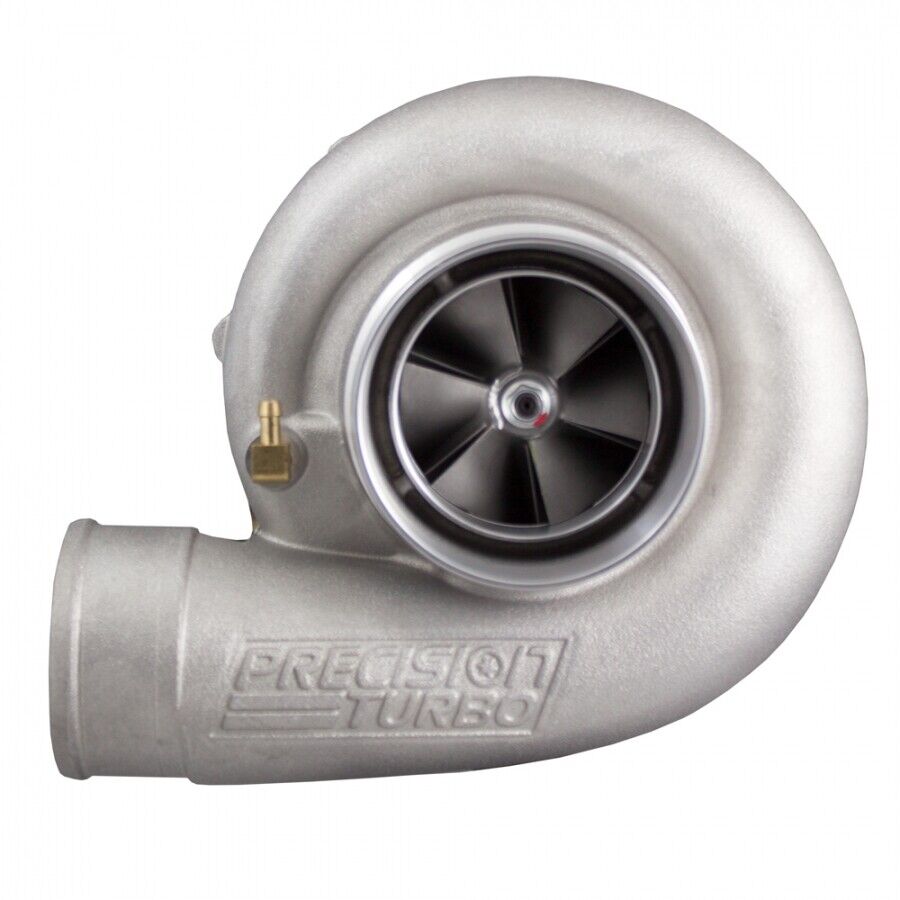

LS-Series PT 7675 Turbocharger

HP Rating: 1150

Featuring a 76mm cast compressor wheel and a 75mm turbine wheel, this turbocharger is an excellent match for the widely-popular LS family of engines.

Purpose built with the LS-enthusiast in mind, this unit features a 360* hydrodynamic bearing system for exceptional reliability and increased thrust capacity. The turbocharger is available with (2) different turbine housing A/R ratios (T4 .81 A/R and T4 .96 A/R), making it ideally suited for a single or twin turbo application. Both options feature a 3 5/8” v-band discharge for easy downpipe installation.

Additionally, the LS-Series PT7675 turbocharger comes standard with our ported H cover (4" inlet and 3" outlet) to protect against compressor surge.

• LS-Series PT7675 w/T4 undivided .81 A/R (Turbocharger part number 02207012219)
• LS-Series PT7675 w/T4 undivided .96 A/R (Turbocharger part number 02207012229)
